Kaelus diplexers, triplexers and quadplexers for sharing feeders and antennas across bands — low insertion loss, high PIM performance and DC/AISG autosense options from 450 MHz to 6 GHz.
Partner brands: Kaelus
Diplexer · 1800 / 2100 · low PIM · BTS or antenna end
The Kaelus DBC0021 combiner provides diplexing of 1800 and 2100MHz bands wherever both signals are required on a single output. This may be at the BTS end of the feeder or at the antenna, saving infrastructure capital expenditure and improving network reliability.

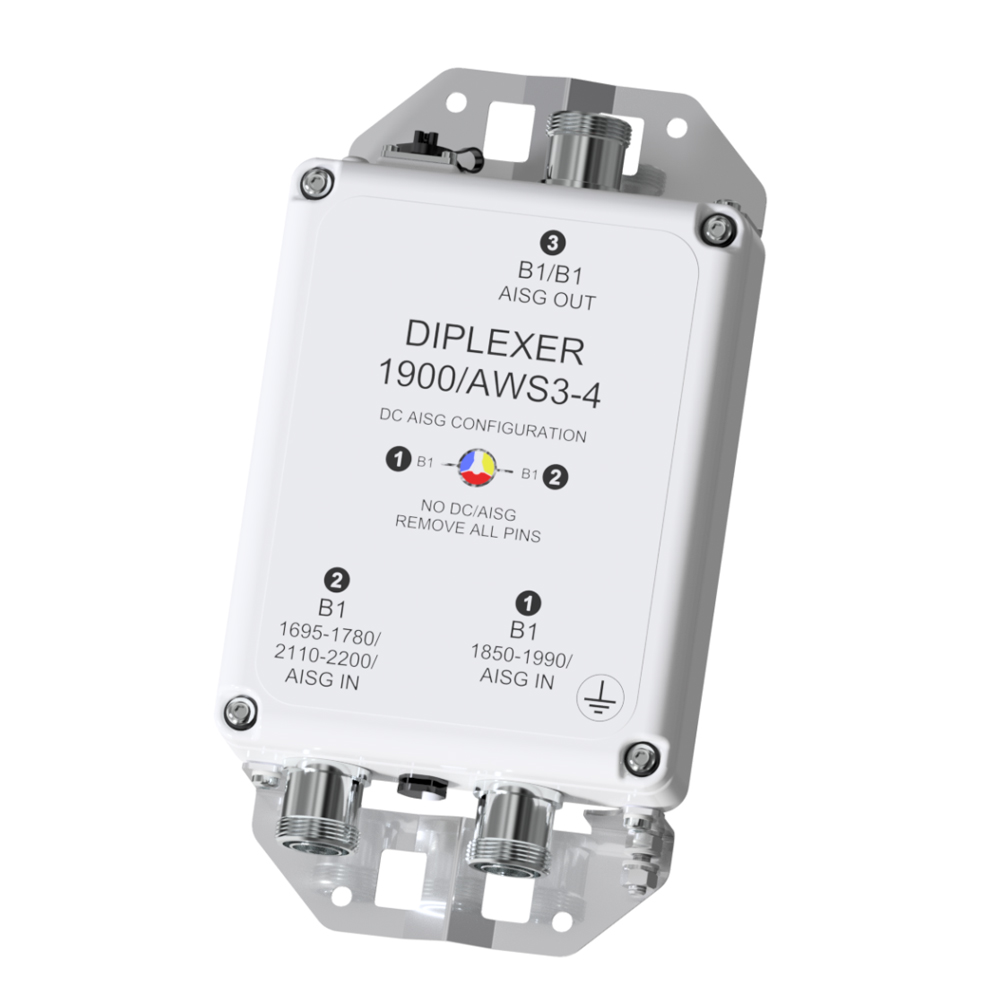

Diplexer · 1900 / AWS · AWS 3 / 3U / 4 ready
Designed to combine 1900 and AWS technologies the Kaelus DBC0051 provides a low loss combiner with excellent insertion loss and passive inter-modulation performance. The DBC0051 is AWS 3 / AWS 3U and AWS 4 ready.

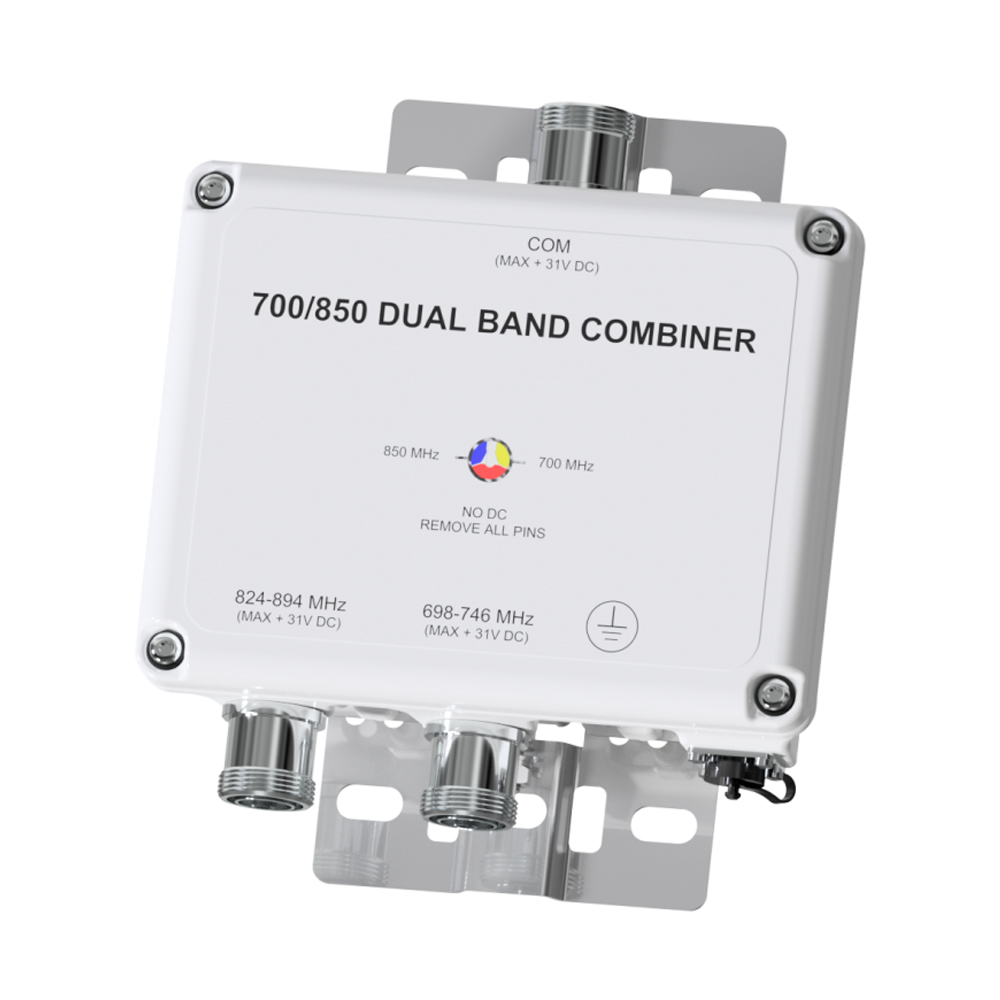

Diplexer · 700 / 850 · compact · low insertion loss
Designed to combine the North American 700MHz and 850MHz bands the Kaelus DBC0056 provides a compact combining solution with low insertion loss thereby saving main feeder or cable runs.

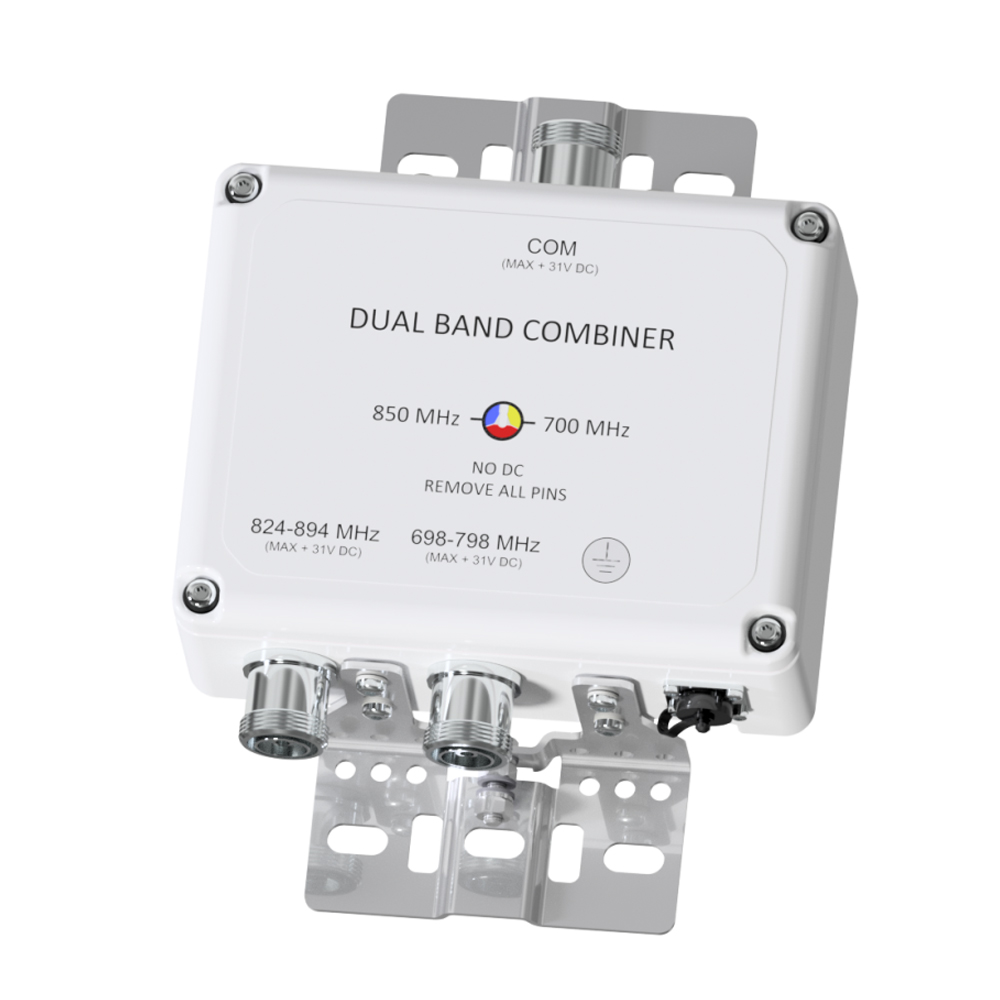

Diplexer · 700 / 850 · outdoor/indoor · low PIM
Designed to combine 700 and 850 technologies, the Kaelus DBC0061 provides excellent insertion loss and passive intermodulation performance. Suitable for outdoor or indoor environments.

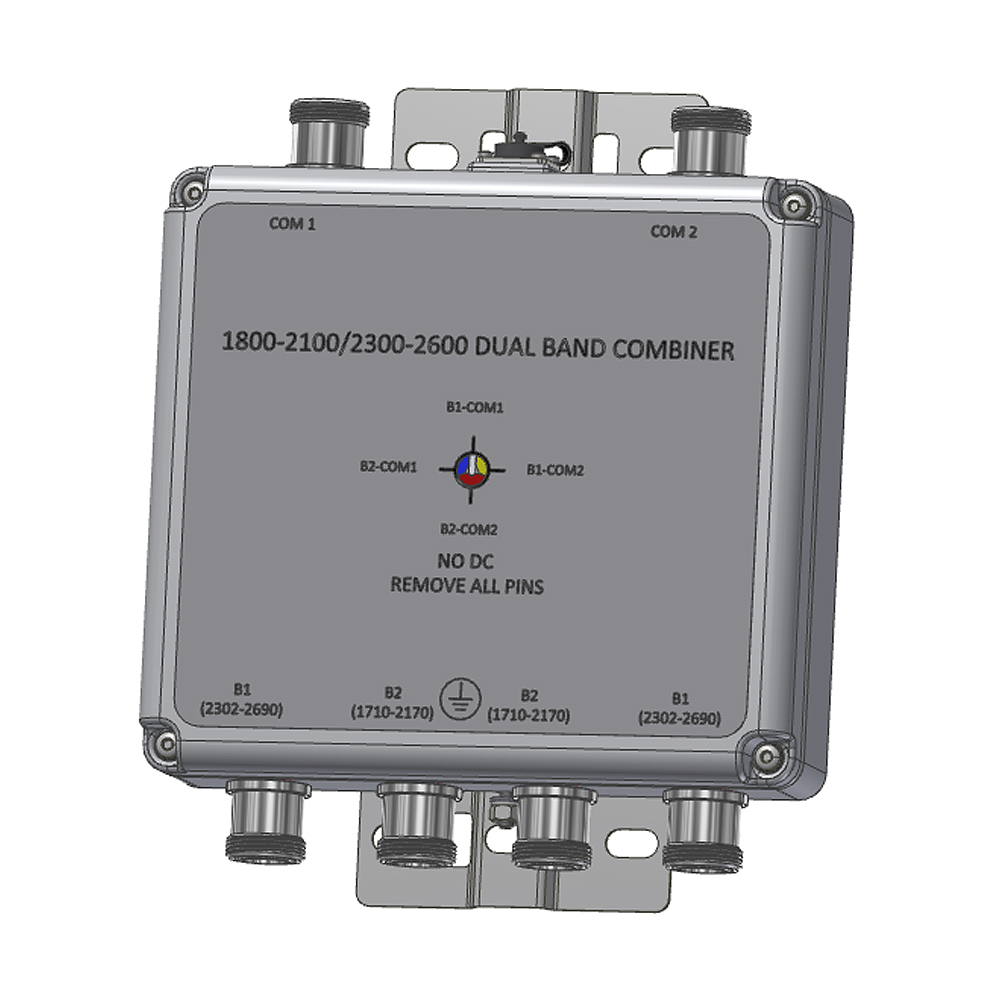

Diplexer · 1800–2100 / 2300–2600 · outdoor-rated
Kaelus world-proven outdoor solutions provide strong RF performance coupled with rugged operation. The DBC0062 combines 1800-2100/2300-2600 technologies onto a single feeder.

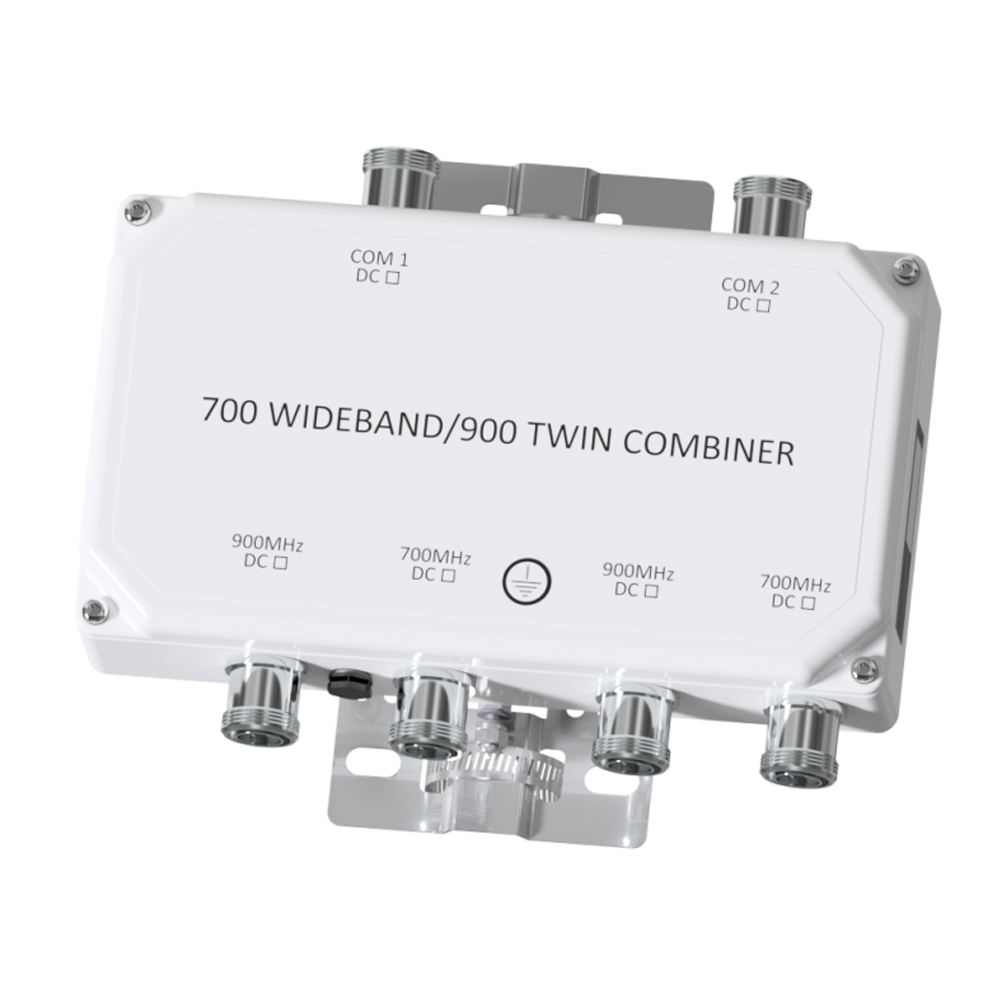

Twin diplexer · 698–803 / 898.4–951.8 · APAC 700/900
Kaelus world-proven outdoor solutions provide strong RF performance coupled with rugged operation. The DBC0068 is a twin diplexer for 698-803/898.4-951.8 MHz.

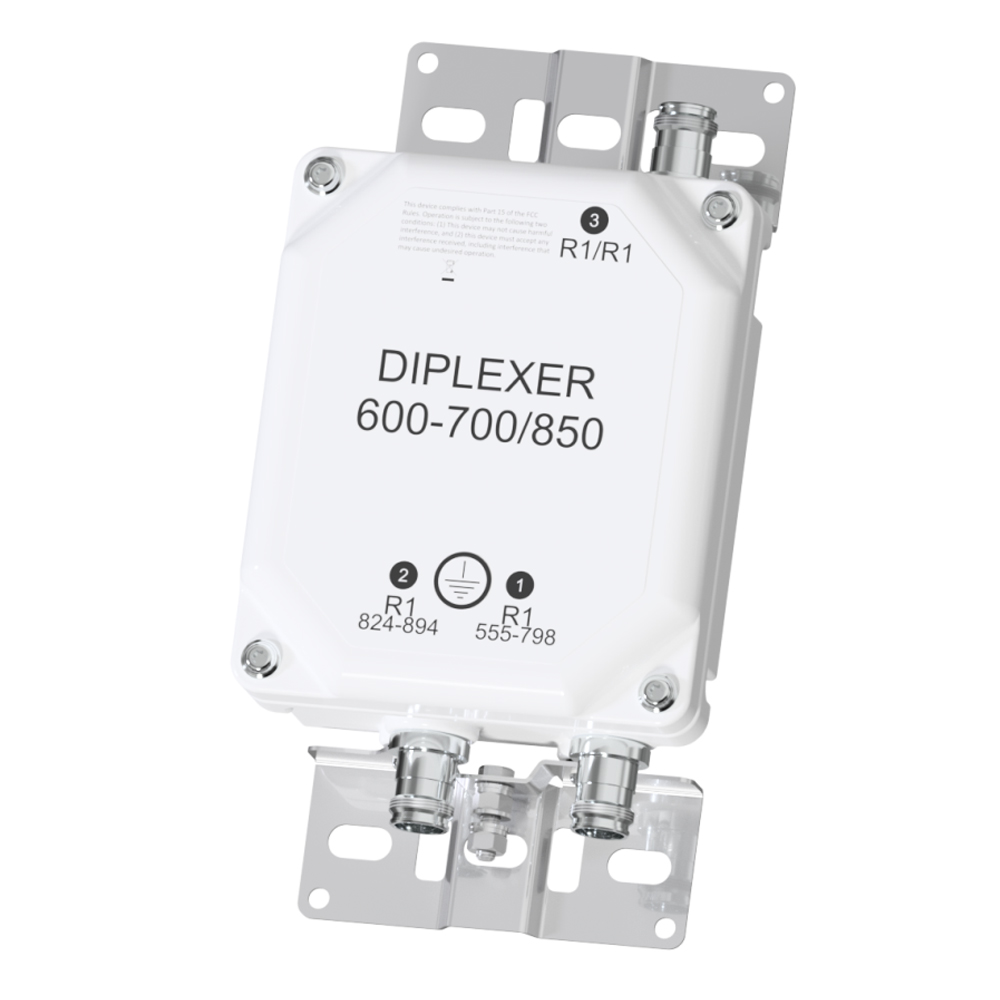

Diplexer · 600–700 / 850 · DC/AISG autosense options
The Kaelus DBC0108 is a bi-directional Diplexer designed to combine 600 & 700 with 850 technologies. The DBC0108 provides excellent insertion loss and passive intermodulation performance.

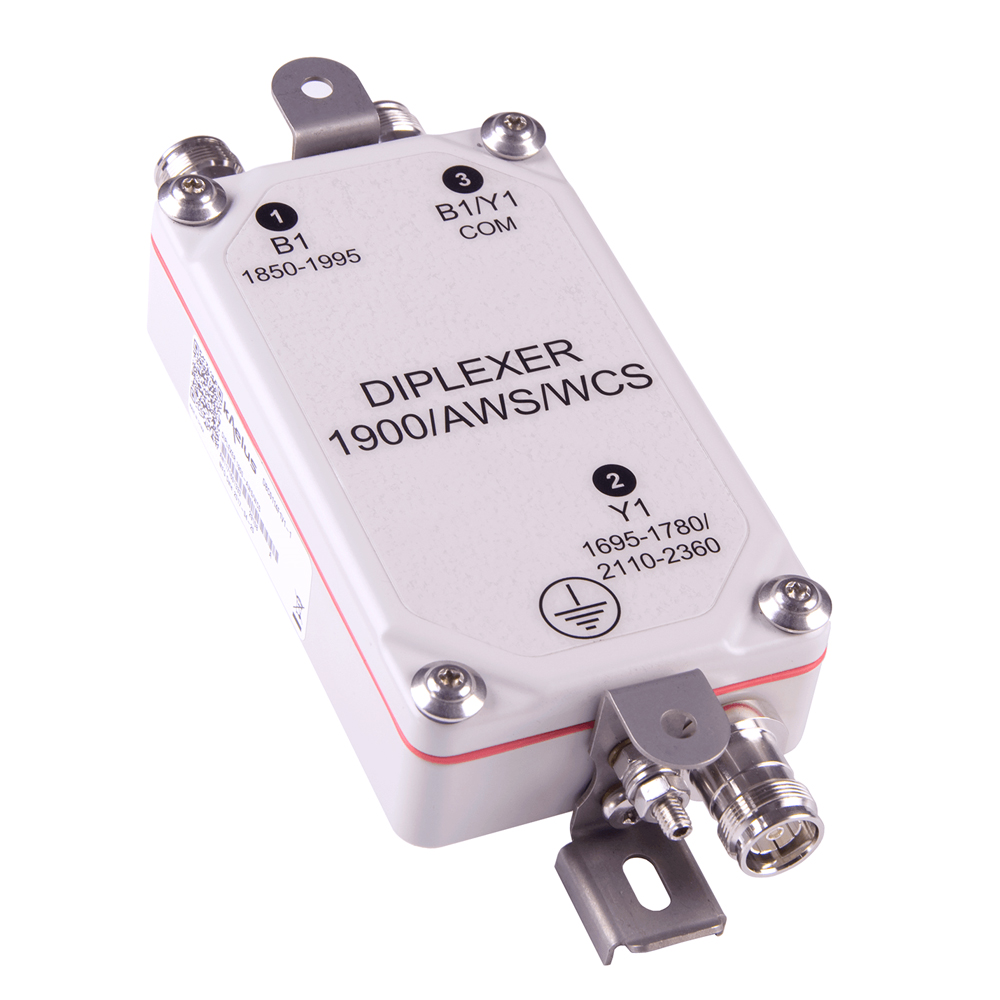

Diplexer · 1900 / AWS-WCS · IP67 · compact
The Kaelus DBC0114 is a bi-directional Diplexer, designed to combine or split 1900 and AWS/WCS bands. The DBC0114 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package.

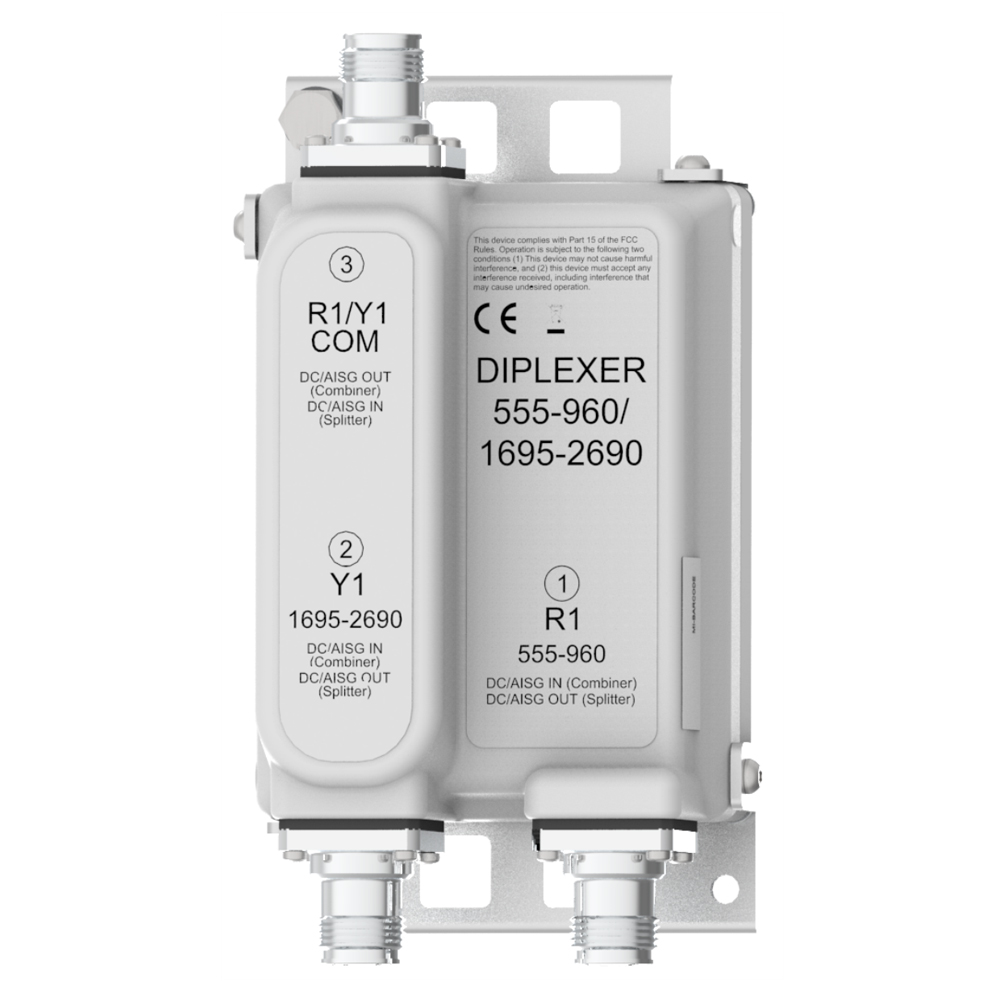

Diplexer · 555–960 / 1695–2690 · BTS or antenna end
The DBC0115 | MI-294 dual band combiner combines the 555-960 MHz and 1695-2690 MHz frequency bands. The DBC0115 | MI-294 can be used at either the BTS or antenna end of the feeder.
Send us your band plan, sector layout or coverage brief — our engineers will spec the right hardware and quote it competitively.
